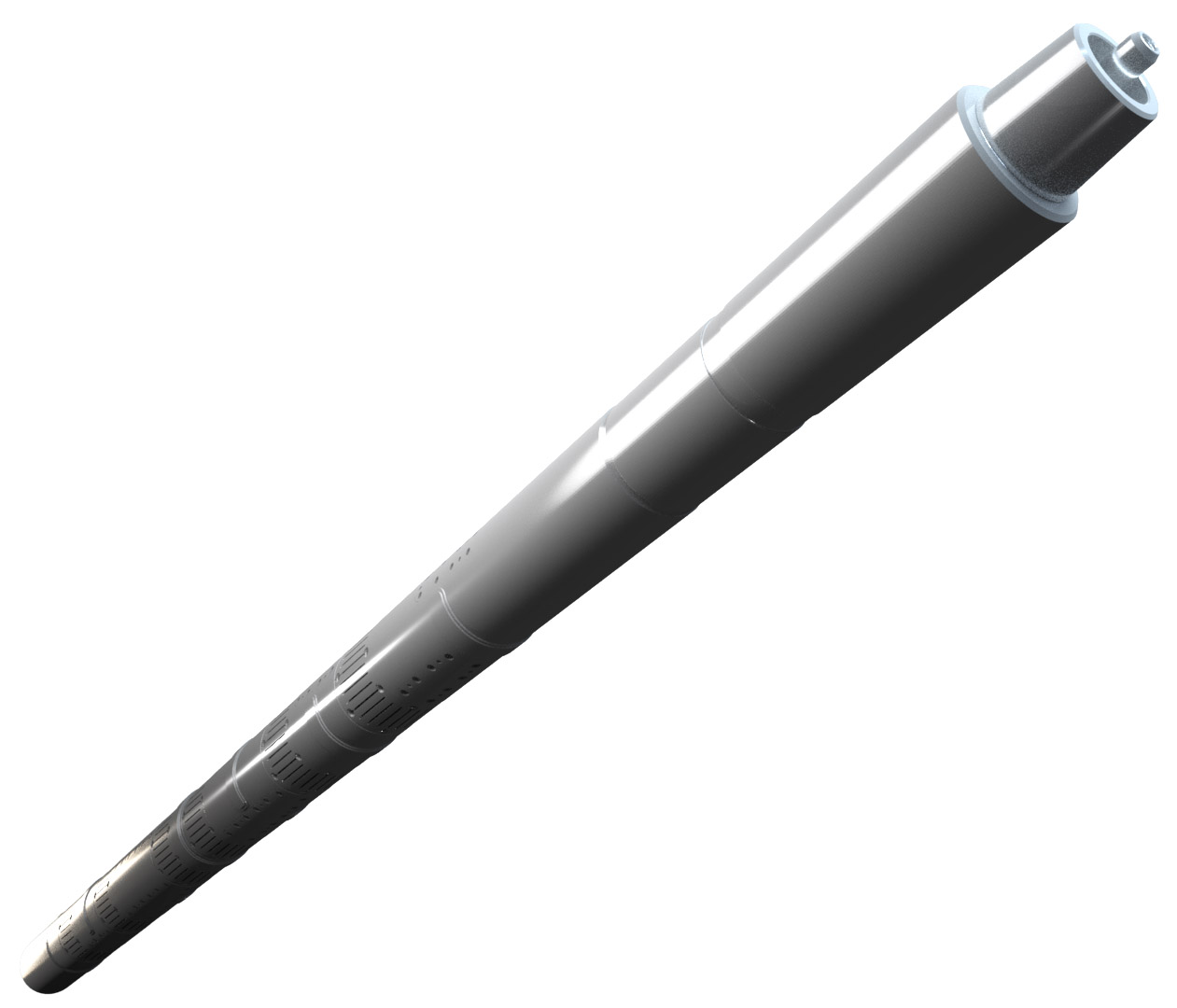

SIG-WPR-PWD-101 Pressure While Drilling (PWD) sensor for WPR measures annular and drill pipe pressures in 4.75, 6.75 and 8.0 in. (121, 172 and 204 mm) WPRs. Captured data may be transmitted in real time via Sigdrill’s MWD/LWD system, or stored in downhole memory for later download and analysis. Real-time data or pressure alarms may be transmitted via Sigdrill MWD.
SIG-WPR-PWD-101
FEATURES & BENEFITS
- Measurement and real-time monitoring of hydrostatic and dynamic circulating fluid pressures for balanced, managed pressure drilling (MPD) and underbalanced drilling (UBD).
- Real-time annular and bore pressure measurements help assess the optimum pressures required within narrow fracture and pore pressure windows.
- Real-time determination of equivalent circulating density (ECD) for hole cleaning, swab and surge pressures for borehole stability and BHA pressure loss.
- Timely annular, bore and differential pressure readings facilitate early detection of fluid influx and lost circulation.
DESIGN
- For use with 4.75, 6.75 and 8.0 in. (121, 172 and 204 mm) WPR tools.
APPLICATIONS
- Managing downhole pressures
- Maintaining formation and borehole integrity
- Managing hydraulics programs
- Supporting early detection programs
